3D SNAPSHOT SENSORS

For Quality Inspection and Robotic Applications

Gocator snapshot sensors combine blue-LED structured light with built-in 3D measurement tools for specific object features. As opposed to lasers that are used to scan moving objects, snapshot sensors use a single snapshot scan to inspect targets with stop/stop motion.

Gocator Brochure
See How a G3 Sensor Works SNAPSHOT SENSORS Inspects Object Shape, Surface and Volume with a Single "Snapshot" Gocator Snapshot Sensors are the first family of 3D smart sensors to combine full-field 3D point cloud acquisition using stereo structured-light (SL) with built-in 3D measurement tools for specific 3D features.

FIND THE RIGHT 3D SNAPSHOT SENSOR FOR YOUR APPLICATION


Gocator 3210 provides a large field of view and measurement range, letting you perform quality inspection on multiple features with a single snapshot. The all-in-one smart snapshot sensor offers high resolution for accurate measurements down to 35 μm using a stereo camera and an industrial projector to deliver long lifetime and uniform lighting throughout the measurement volume.

GOCATOR 3200 SERIES

For 3D Inspection of Large Parts/Features

  • 3D POINT CLOUDS IN A SINGLE SNAPSHOT

  • ACCURATE 3D MEASUREMENT WITH BLUE LIGHT PROJECTION

  • INDUSTRIAL DESIGN FOR LONG LIFE

More Details
The combination of 6.7 µm XY resolution and 0.2 µm Z repeatability makes Gocator® 3504 ideal for precision inspection of momentarily stationary small parts-in applications such as connector and pin coplanarity, wire detection, surface flatness, and stent inspection. Get more details and content here: https://lmi3d.com/gocator-3504-snapshot-sensor

Gocator 3500 Series

For High-Resolution 3D Inspection of Small Parts/Features

More Details

  • Fast scan rate (6 Hz w/ acceleration)

  • 5-megapixel stereo camera minimizes occlusions

  • Achieves down to 6 micron XY resolution

  • Pick-and-place friendly for robotic/stationary inspection applications

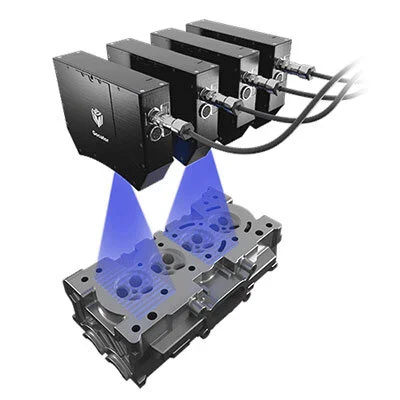

GOCATOR® VOLUME CHECKER

For Volume Gauging of Cylinder Heads and Piston Bowls in Small to Medium-Sized Internal Combustion Engines

  • Gocator snapshot sensor w/ custom measurement tools

  • 3D non-contact measurement

  • Replaces traditional optical methods such as fluids, pressurized air, acoustics

  • Easily handles shape variation

  • Stereo camera minimizes occlusions

Get Datasheet


Easy Robot Integration:
FOR CARRYING OUT PICK-AND-PLACE APPLICATIONS

Ideal for inline applications where objects are momentarily stationary such as robotic inspection and pick-and-place, snapshot sensors snapshot sensors minimize the cost of expensive motion system components and errors due to vibration.



Built-In Hardware Acceleration:
FOR FASTER DATA PROCESSING

In addition to their powerful scanning engines, every Gocator high-resolution structured light 3D snapshot sensor comes with next-generation dual-core controllers, which significantly increase onboard processing speed to match inline production speed.





Industrial Design:
FOR HIGH RELIABILITY

Rugged housing, small form factor, and light weight make these sensors ideal for fitting into small spaces and mounting on robots. Gocator snapshot sensors feature an IP67-rated design with an industrial projector offering lifetimes up to 10 years of continuous operation.



Stereo Camera Technology:
FOR MINIMIZING OCCLUSIONS

Stereo cameras see more data and therefore produce less occlusions. With a single camera, any occlusion caused by surface geometry that blocks projected light or the camera’s view will result in no data. Stereo cameras, on the other hand, effectively use three views of the part to capture more data.
