200 Series

MULTI-POINT PROFILE SCANNERS

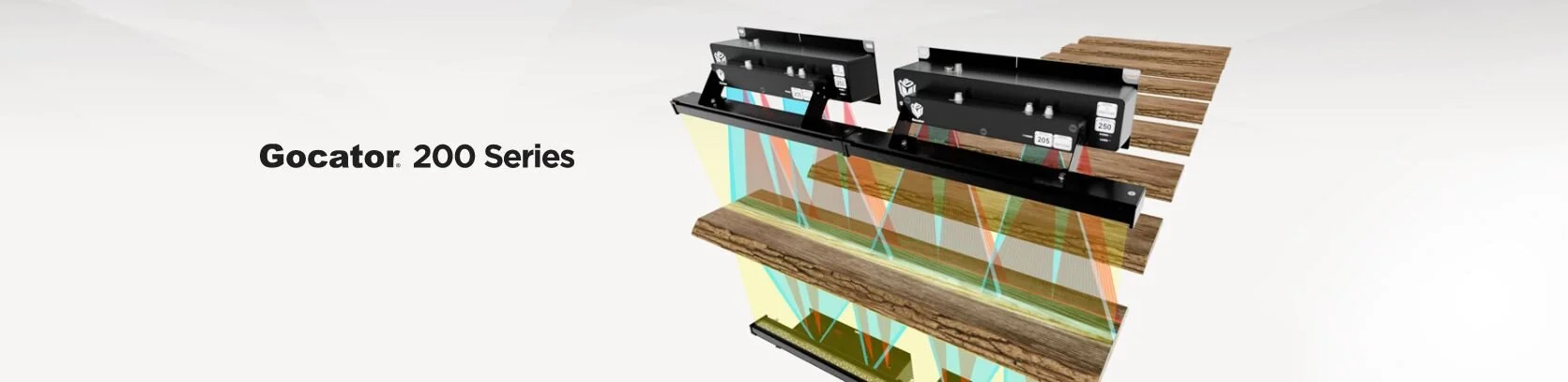

A Flexible System for Transverse Board Scanning

With the Gocator 200 series you can create a modular scanning system that allows you to mix 3D profilestracheid detectionand color vision. Run these systems at up to 300 feet per minute in transverse board scanning applications (edging, trimming, planing).




Gocator 210

Entry-Level Multi-Point Profile Scanner

  • Fast scan rate (2 kHz / 200 FPM / 61 MPM)

  • Generates profiles at 1.1″ / 28 mm spacing

  • Large measurement range (14″ / 356 mm) for scanning thick material



Gocator 230

High-End Multi-Point Profile Scanner

  • High-speed scanning (3 kHz / 300 FPM / 91 MPM)

  • Generates profiles at 0.3″ / 8.5 mm spacing

  • Delivers highest resolution for 3D shape



Gocator 250

High-End Multi-Point Profile Scanner with Tracheid

  • High-speed scanning (3 kHz / 300 FPM / 91 MPM)

  • Tracheid for grain angle and knot detection (1.5kHz)

  • Generates profiles and tracheid at 0.3″ / 8.5 mm spacing

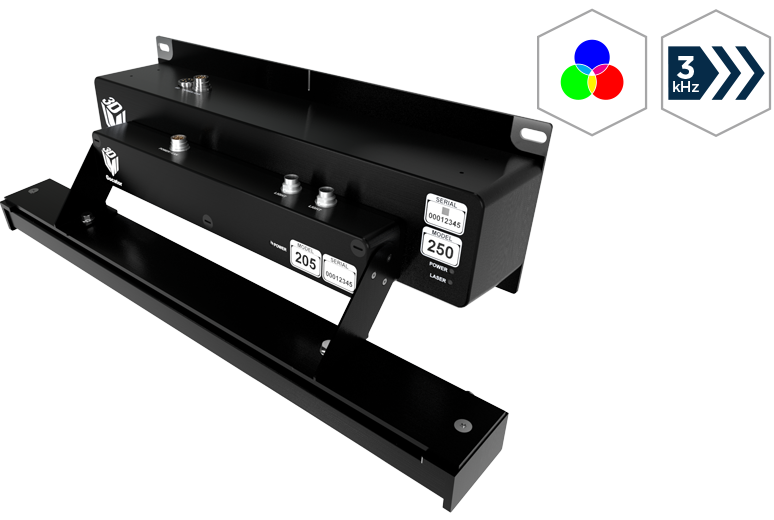

Gocator 205

Bolt-On Color Vision Module

  • High-speed color scanning (3 kHz / 300 FPM / 91 MPM)

  • Supports two external light bars for white LED illumination

  • Delivers 0.2" x 0.01" / 0.5 x 0.25 mm color pixels

  • For use in conjunction with Gocator 210, 230 or 250 multi-point scanners
