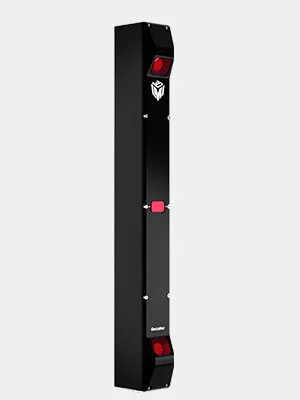

2800 SERIES

Dual Triangulation 3D Laser Line Profile Sensors

Two cameras maximize scan coverage and minimize occlusions for applications such as primary log scanning.

  • Megapixel imager. 1280 points per profile resolution

  • Field-of-view up to 1260 mm

  • Measurement range up to 800 mm


Quick Specs


Model 2880
Resolution X (mm) 0.375
Resolution Z (mm) 0.092
Field of View(mm) 390-1260
Clearance Distance (mm) 350
Masurement Range (mm) 800

MECHANICALS

G1300 Connector_drawing_9.png

90 Degree Connector / Straight Connector
