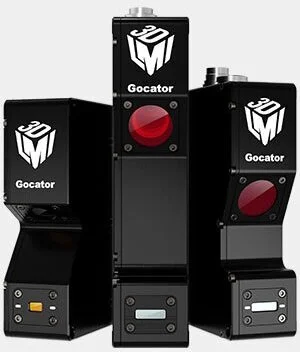

2400 SERIES

Ultra High-Resolution 3D Laser Line Profile Sensors

Gocator 2400 sensors are designed for 100% inspection of challenging targets, such as micro-features on small electronic parts, and dark materials such as tire tread/sidewall and rubber sheets in high-speed inline applications.

  • 2-Megapixel imager. Up to 1940 points per profile resolution

  • Field-of-view (FOV) up to 194 mm

  • Measurement range up to 210 mm


Quick Specs


Model 2410 2420 2430 2440
Resolution X (mm) 0.0058 0.014 0.037 0.090
Resolution Z (mm) 0.0011 0.0018 0.006 0.013
Field of View(mm) 10-10 27-32 47-85 96-194
Clearance Distance (mm) 19.0 60.0 75 183
Measurement Range (mm) 6 25 80 210
Laser Blue Blue Red Red

MECHANICALS

G1300 Connector_drawing_9.png

90 Degree Connector / Straight Connector
