AS40 Backlight Conveyors
Specifications
Width: 4", 5", 6", 8", 10", 12"
Length: up to 20'
Load: up to 120 lbs
Speed: up to 400 FPM
Profile: 1.95" high
Assembled with all metric fasteners
Light Source: LED
Quantity LEDs: 12 per Square Inch
LED Life: up to 100,000 hours*
Features
Single Piece Aluminum Frame
Box Frame Construction for Rigidity
The frame is the backbone of the conveyor. A sturdy frame helps to ensure positive tracking throughout the life of the conveyor. That’s why we designed ours with a box-frame construction that resists both latitudinal and longitudinal deflections. Conveyors 18” and wider feature a rigid aluminum/steel frame.
Crowned Pulley
Ensures Accurate Tracking in Most Applications
On any conveyor, the belt pulls to the longest point on the conveyor. By using a crowned pulley — that’s higher in the center than at the ends — we’re able to ensure proper tracking in most applications without the use of a v-guide. The straight knurling provides positive traction, but allows the belt to float slightly from side to side without damage.
Tension Release Tail
Flips up at the push of a button
Tension Release Tails flip up at the push of a button to relieve tension on the belt. This makes it easy to clean under the belt. A gentle push locks the tail back into place with tension and tracking setting retained.
V-Guide Belt Capable
Proper tracking for demanding applications
All Automation Series conveyors support optional v-guide belting, which works to keep the belt centered in applications with side loading/exiting or reversing.

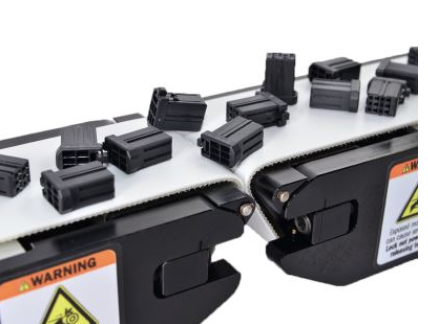

Optional Nosebar Tail
Ideal for Transferring Small Products
Optional nosebar tails allow for transfers of small products between conveyors. The tighter 11mm radius of the pulley reduces the gap between pulleys.
